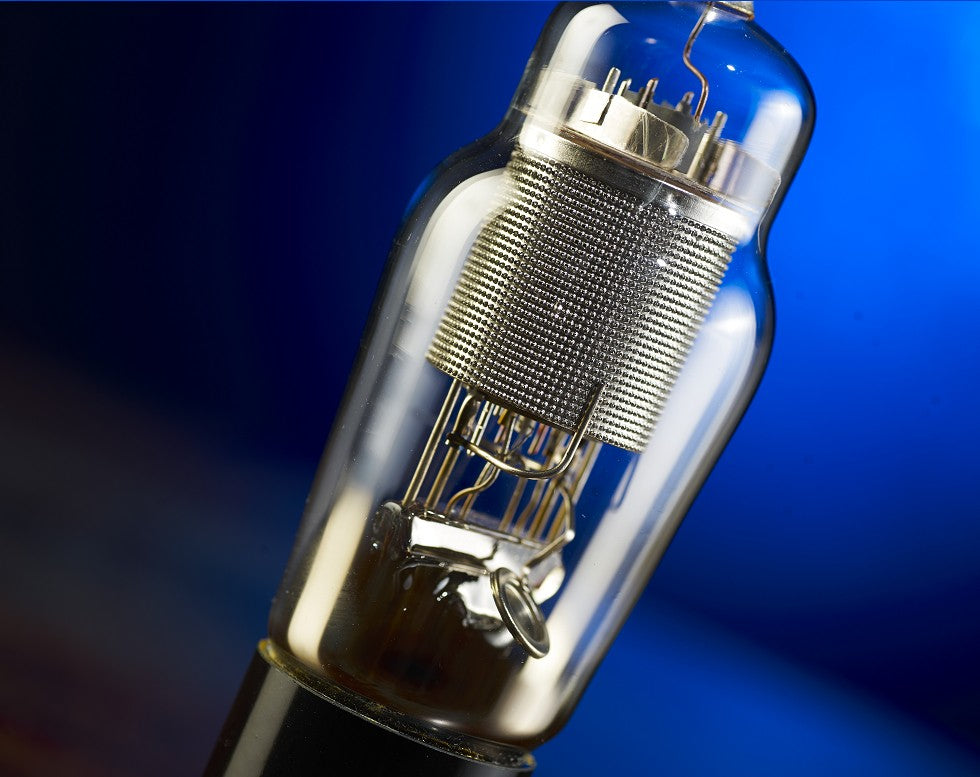

PSVANE WE Series WE310A Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
U.S. customers, please note: The latest U.S. tariffs have already been priced in. What you see is what you pay—there are no additional fees beyond the listed price for U.S. customers. Simply place your order and wait for delivery.
Filament Voltage
- Filament Voltage (Uf): 10 V
- Filament Current (If): 0.36 A
Interelectrode Capacitance
- Input Capacitance: 15.5 pF
- Output Capacitance: 8.4 pF
- Grid-to-Plate Capacitance: ≤1.5 pF
Typical Operating Parameters
- Anode Voltage (Ua): 135 V
- Screen Grid Voltage (Ug2): 135 V
- Control Grid Bias (Ug): -3 V
- Suppressor Grid Voltage (Ug3): 0 V
- Anode Current (Ia): 5.6 mA
- Screen Grid Current (Ig2): 1.5 mA
- Grid Leakage Current (Ig1): ≤4 µA
- Transconductance (Gm): 0.75 mA/V
Electrical Parameters - Absolute Maximum Ratings
| Parameter | Minimum | Maximum | Unit |
|---|---|---|---|
| Filament Voltage | 9 | 11 | V |
| Anode Voltage | - | 300 | V |
| Screen Grid Voltage | - | 300 | V |
| Anode Dissipation Power | - | 10 | W |
| Screen Grid Dissipation Power | - | 4 | W |
| Filament-to-Cathode Voltage | - | ±200 | V |
| Control Grid Circuit Resistance | - | 700 | kΩ |
PSVANE WE Series WE310A Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
Sale price$250.00
Regular price$278.00 (/)
