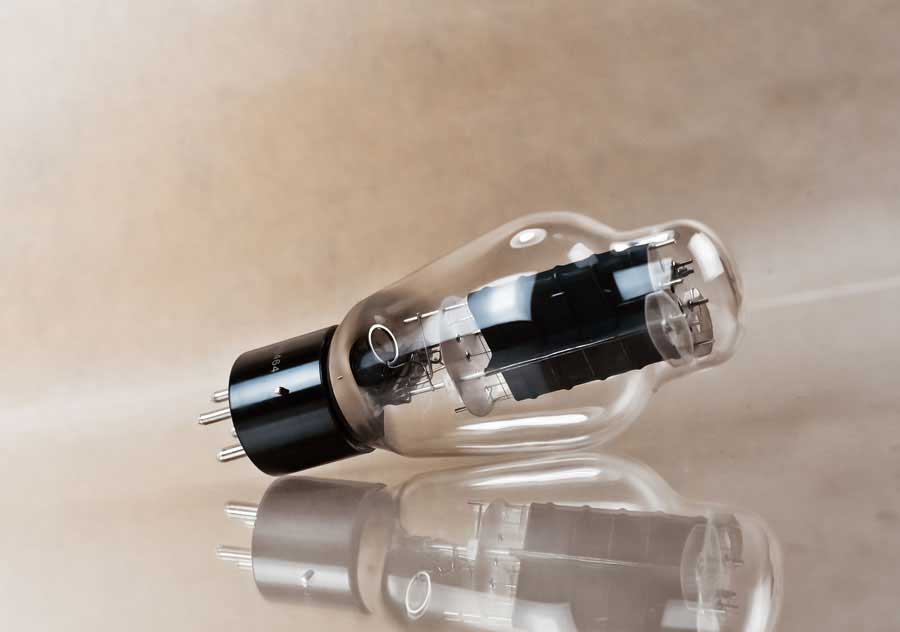

PSVANE WE Series WE300B Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

U.S. customers, please note: The latest U.S. tariffs have already been priced in. What you see is what you pay—there are no additional fees beyond the listed price for U.S. customers. Simply place your order and wait for delivery.

Filament Voltage & Current:

• Filament Voltage (Uf): 5V
• Filament Current (If): 1.2A

Maximum Ratings:

• Maximum Anode Voltage (Ua): 480V
• Maximum Anode Dissipation Power: 40W

Cathode Current:

• Self-Bias: 100mA
• Fixed Bias: 70mA

Interelectrode Capacitance:

• Input Capacitance: 9pF
• Output Capacitance: 4.3pF
• Grid-to-Plate Capacitance: 15pF

Static Parameters:

• Anode Voltage (Ua): 300V
• Grid Voltage (Ug): -60V
• Anode Current (Ia): 60mA
• Transconductance (Gm): 5.5mA/V
• Internal Resistance (Ri): 0.7kΩ
• Amplification Factor (μ): 3.85
• Output Power (Pout): 6.6W
