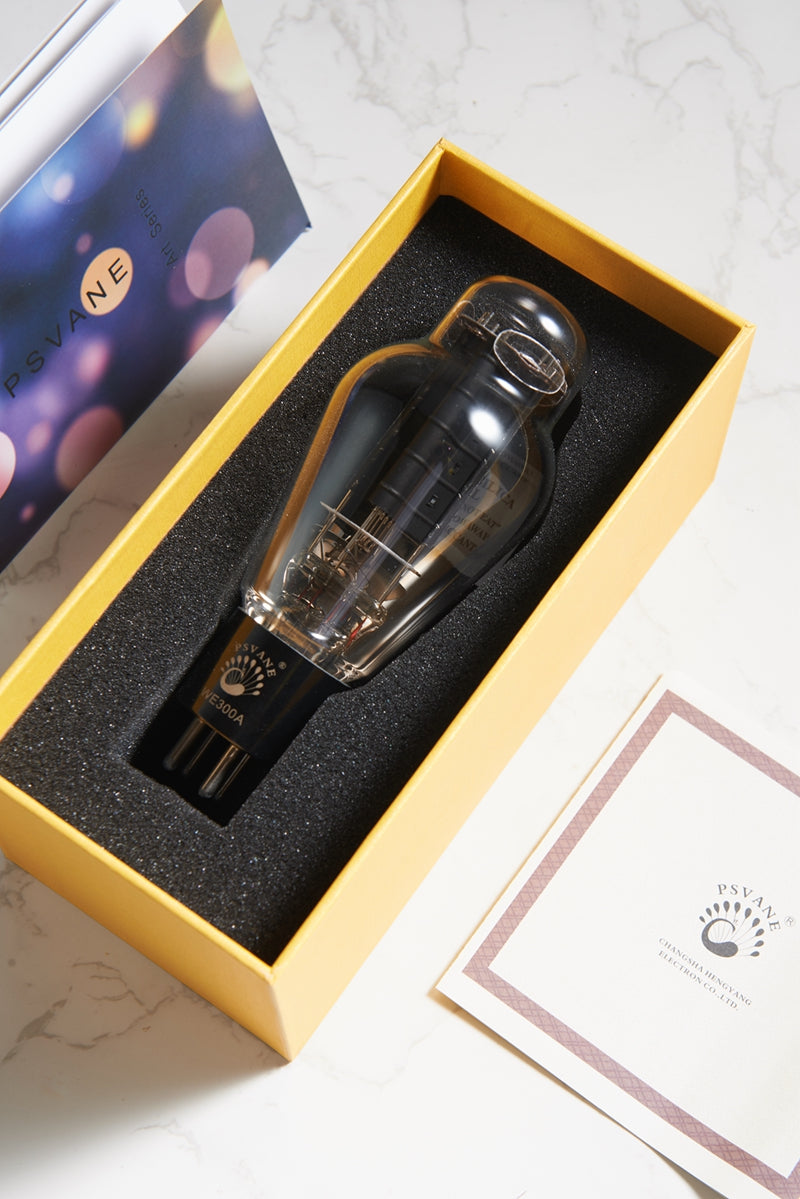

PSVANE WE Series WE300A Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

U.S. customers, please note: The latest U.S. tariffs have already been priced in. What you see is what you pay—there are no additional fees beyond the listed price for U.S. customers. Simply place your order and wait for delivery.

Filament Voltage
Uf .............................................................. 5 V
If .............................................................. 1.2 A

Maximum Rated Values
Anode Voltage .......................................... 480 V
Anode Dissipation Power ............................ 40 W

Cathode Current
Self-bias .................................................... 100 mA
Fixed Bias ................................................. 70 mA

Interelectrode Capacitance
Input Capacitance ...................................... 9 pF
Output Capacitance ................................... 4.3 pF
Cross-capacitance ..................................... 15 pF

Static Parameters
Ua ............................................................ 300 V
Ug ........................................................... -60 V
Ia ............................................................ 60 mA
Gm ......................................................... 5.5 mA/V
Ri ............................................................ 0.7 kΩ
μ ............................................................ 3.85
Pout ......................................................... 6.6 W
