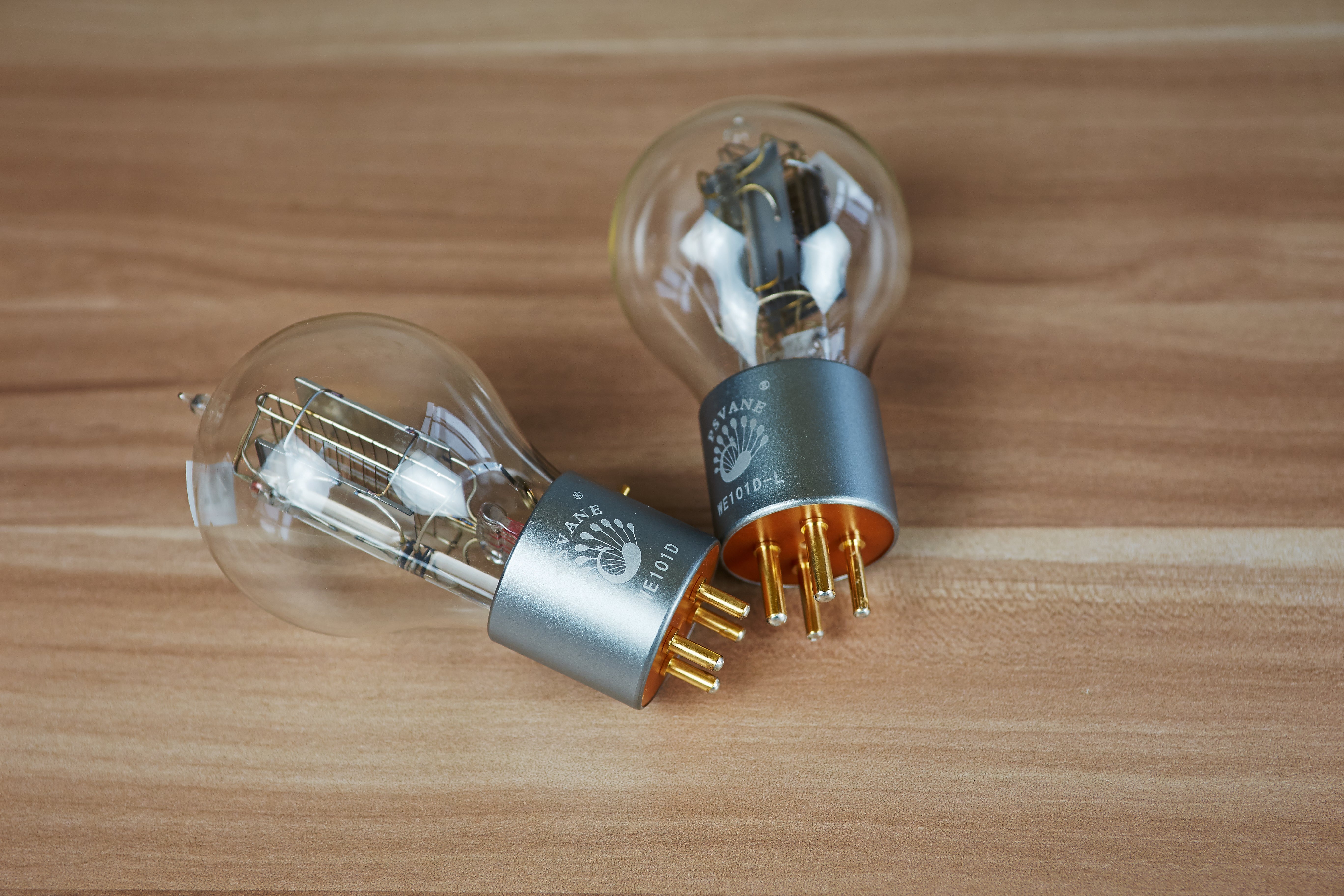

PSVANE WE Series WE101D Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

U.S. customers, please note: The latest U.S. tariffs have already been priced in. What you see is what you pay—there are no additional fees beyond the listed price for U.S. customers. Simply place your order and wait for delivery.

Filament Voltage
U f: .......................................... 4.5 V
If: .......................................... 1.0 A

Interelectrode Capacitance
Input Capacitance: ...................... 4.8 pF
Output Capacitance: ................... 5.2 pF
Cross Capacitance: ..................... ≤ 3.3 pF

Typical Operating Parameters
Anode Voltage (Ua): .................. 190 V
Grid Voltage (Ug): ..................... -18 V
Anode Current (Ia): ..................... 6.4 mA

Electrical Parameters - Absolute Maximum Ratings
