PSVANE WE EL34PH Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

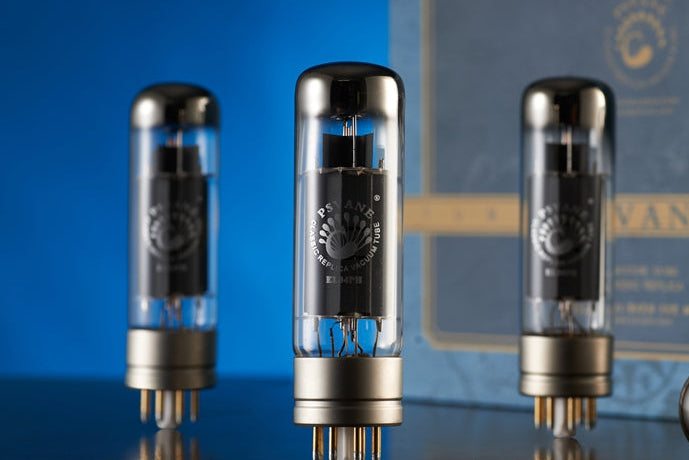

The PSVANE EL34PH is a precise replica of the Philips EL34 metal base vacuum tube from the 1950s, designed to allow audiophiles to experience its classic sound at a more affordable price.
Here are the key technical specifications for the EL34PH:
- Filament Voltage (Uh): 6.3V
- Filament Current (Ih): 1.5A
- Maximum Anode Voltage: 800V
- Maximum Screen Grid Voltage (G2): 500V
- Maximum Control Grid Voltage (G1): -100V
- Maximum Anode Dissipation Power: 25W
- Maximum Screen Grid Dissipation Power (G2): 8W
- Maximum Cathode Current: 150mA
- Input Capacitance: 15.2pF
- Output Capacitance: 8.4pF
- Transconductance (Gm): 11mA/V
- Internal Resistance (ri): 15kΩ
- Voltage Amplification Factor (μ): 11
PSVANE WE EL34PH Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
Sale price$157.00
Regular price$175.00 (/)
