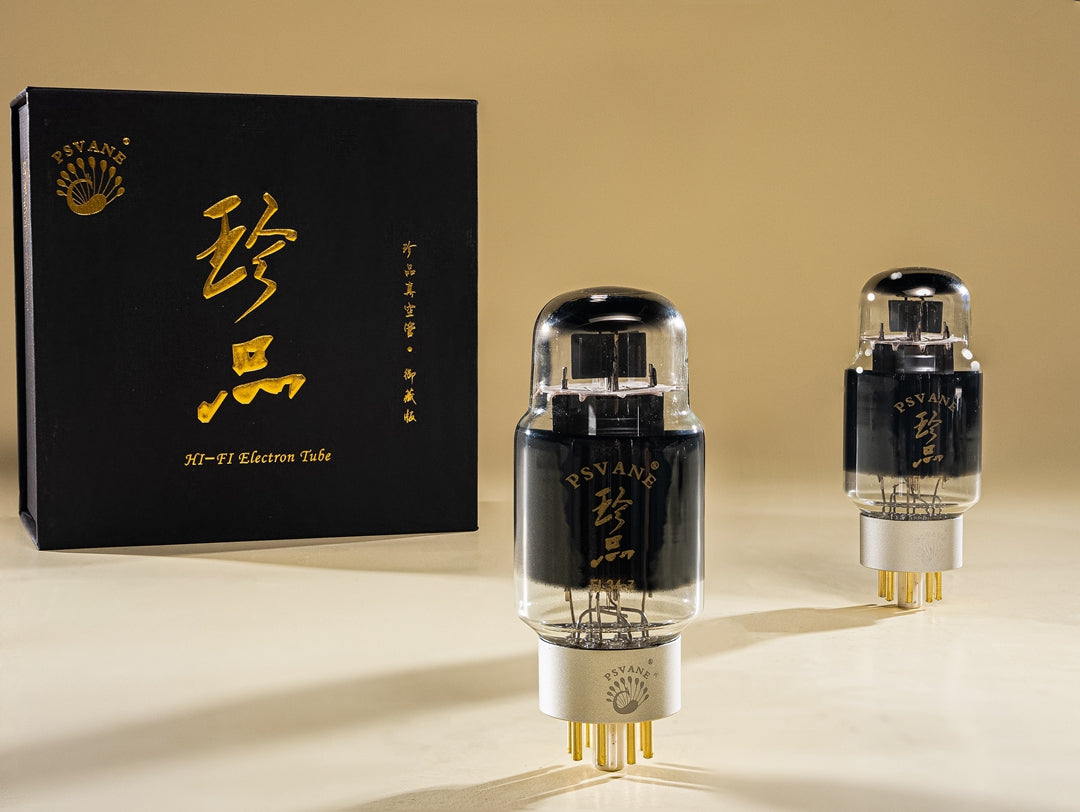

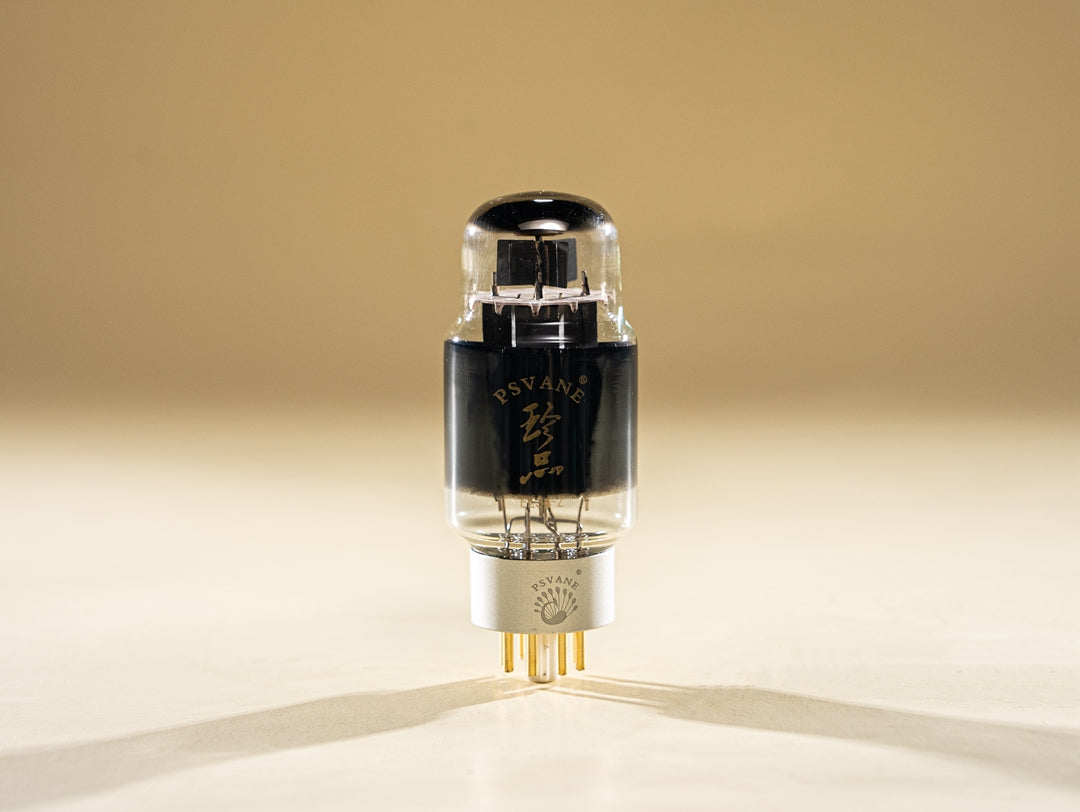

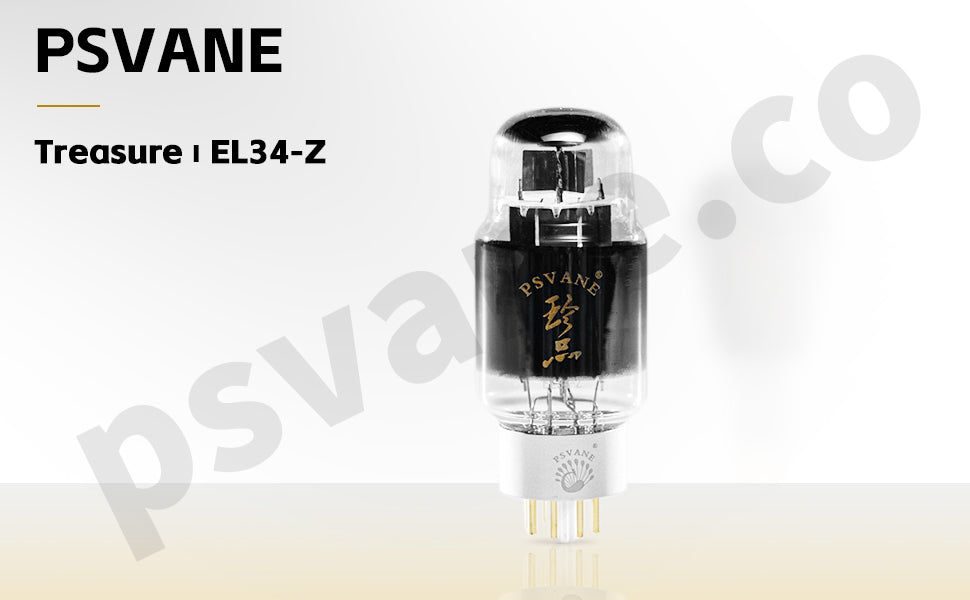

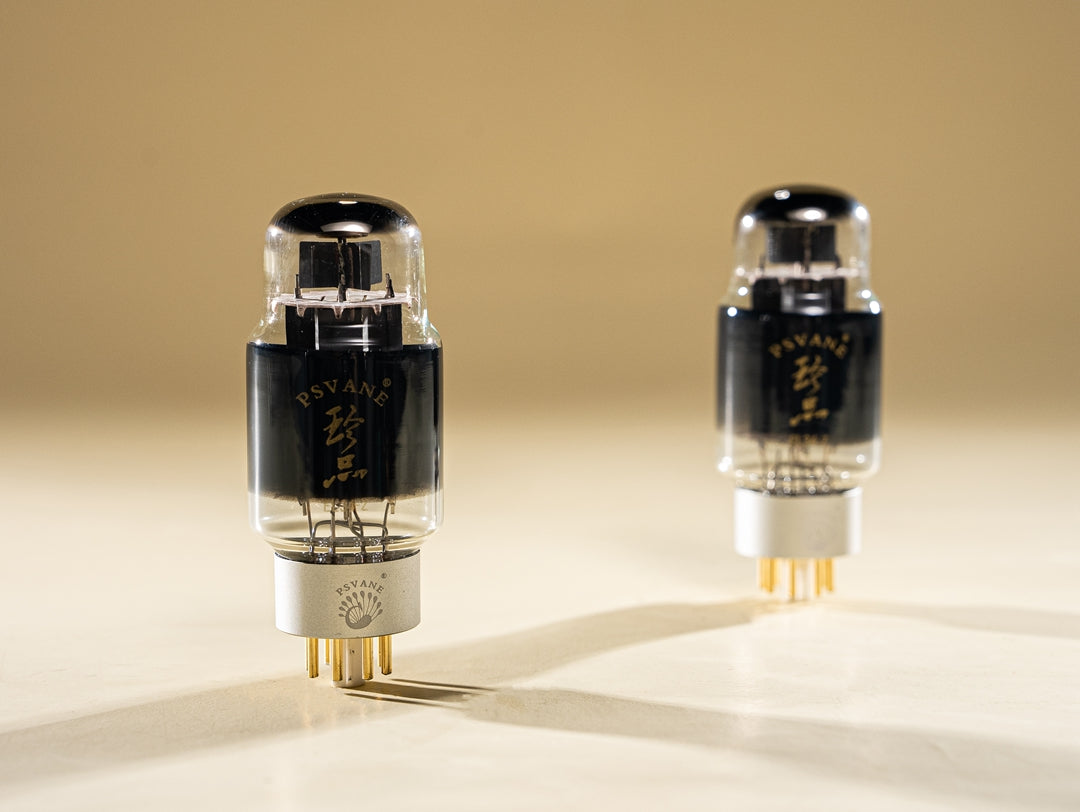

PSVANE TREASURE EL34-Z Vacuum Tube (2 PACK)
U.S. customers, please note: The latest U.S. tariffs have already been priced in. What you see is what you pay—there are no additional fees beyond the listed price for U.S. customers. Simply place your order and wait for delivery.
Filament Heating
Uh .............................................. 6.3 V
Ih ............................................... 1.5 A
Maximum Ratings
Parameter |
Value |
|---|---|
Anode Voltage (Ua) |
800 V |
Second Grid Voltage (Ug2) |
500 V |
First Grid Voltage (Ug1) |
-100 V |
Anode Dissipation Power (Pa) |
25 W |
Second Grid Dissipation Power (Pg2) |
8 W |
Cathode Current (Ik) |
150 mA |
Heater-to-Cathode Voltage (Uhk) |
±100 V |
Glass Envelope Temperature |
250 ℃ |
Grid 1 Resistance
-
Self-Bias ......................... 0.7 MΩ
-
Fixed Bias ........................ 0.5 MΩ
Inter-Electrode Capacitance
Parameter |
Value |
|---|---|
Input Capacitance |
15.2 pF |
Output Capacitance |
8.4 pF |
Cross-Coupling Capacitance |
1.1 pF |
Grid 1 to Heater Capacitance |
1.0 pF |
Heater-to-Cathode Capacitance |
10 pF |
Static Parameters
Parameter |
Value |
|---|---|
Anode Voltage (Ua) |
250 V |
Second Grid Voltage (Ug2) |
250 V |
Third Grid Voltage (Ug3) |
0 V |
First Grid Voltage (Ug1) |
-12.2 V |
Anode Current (Ia) |
100 mA |
Transconductance (Gm) |
11 mA/V |
Internal Resistance (ri) |
15 kΩ |
Amplification Factor (μg1-g2) |
11 |
Exactly matched pair service，12 months warranty
PSVANE TREASURE EL34-Z Vacuum Tube (2 PACK)
Sale price$95.00
Regular price$106.00 (/)
PSVANE TREASURE EL34-Z
