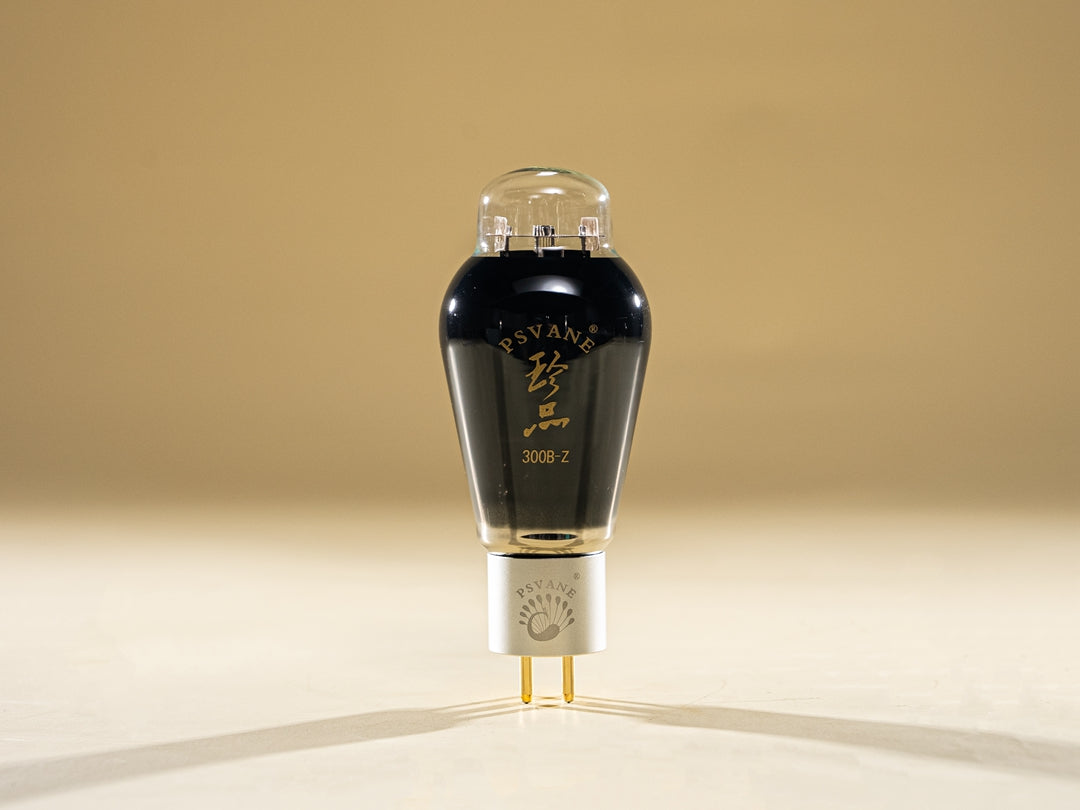

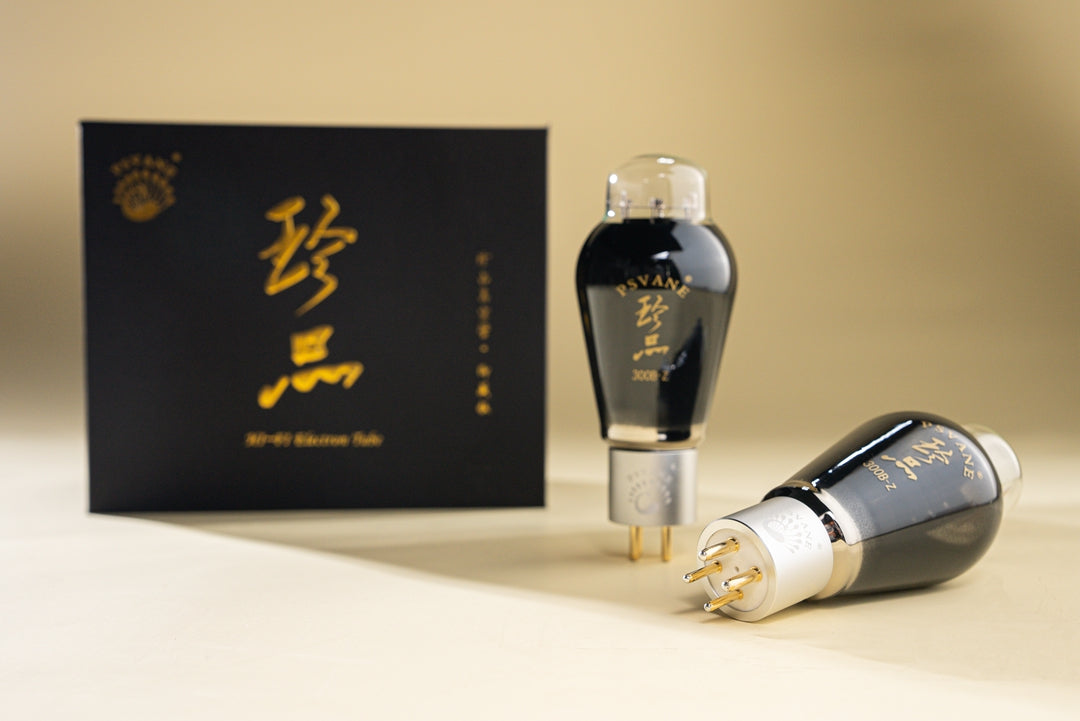

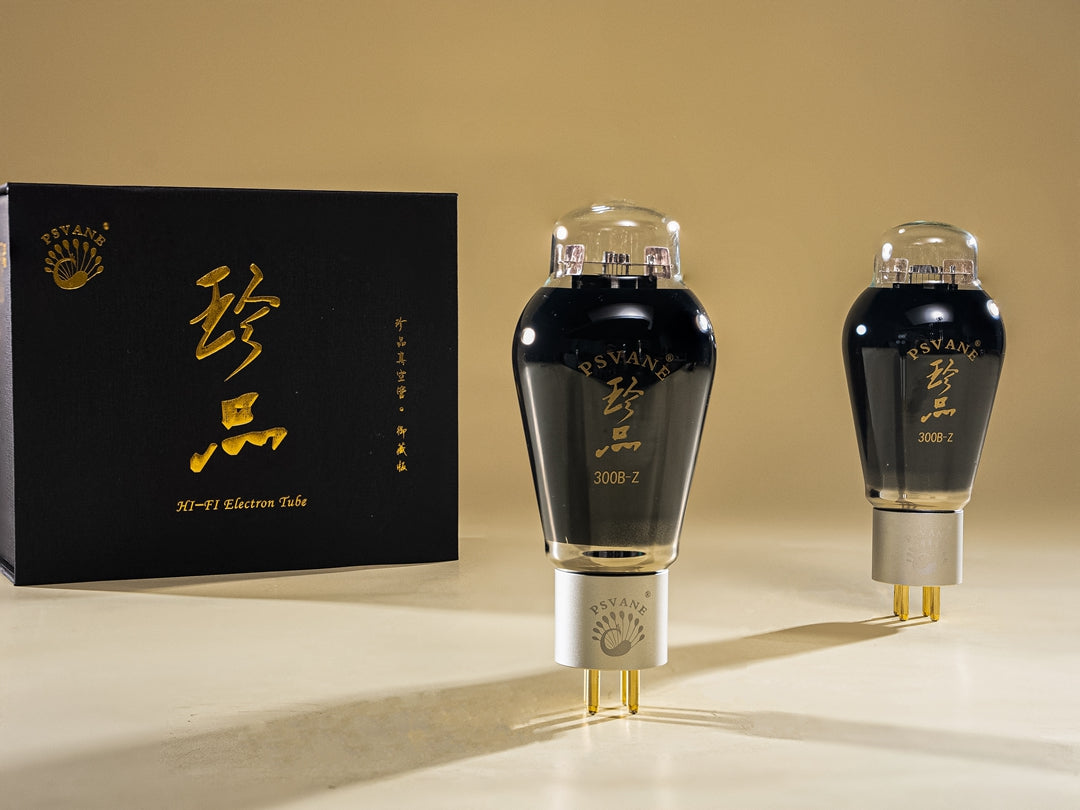

PSVANE TREASURE Series 300B-Z Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
For European customers: The discounted prices displayed on the page already include all applicable duties.
Filament Voltage and Current
Uf .............................................. 5 V
If ............................................... 1.2 A
Maximum Ratings
| Parameter | Value |
|---|---|
| Anode Voltage (Ua) | 480 V |
| Anode Dissipation Power (Pa) | 40 W |
Cathode Current
- Self-Bias ......................... 100 mA
- Fixed Bias ........................ 70 mA
Inter-Electrode Capacitance
| Parameter | Value |
|---|---|
| Input Capacitance | 9 pF |
| Output Capacitance | 4.3 pF |
| Cross-Coupling Capacitance | 15 pF |
Static Parameters
| Parameter | Value |
|---|---|
| Anode Voltage (Ua) | 300 V |
| Grid Voltage (Ug) | -60 V |
| Anode Current (Ia) | 60 mA |
| Transconductance (Gm) | 5.5 mA/V |
| Internal Resistance (Ri) | 0.7 kΩ |
| Amplification Factor (μ) | 3.85 |
| Output Power (Pout) | 6.6 W |
PSVANE TREASURE Series 300B-Z Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
Sale price$226.00
Regular price$251.00 (/)
