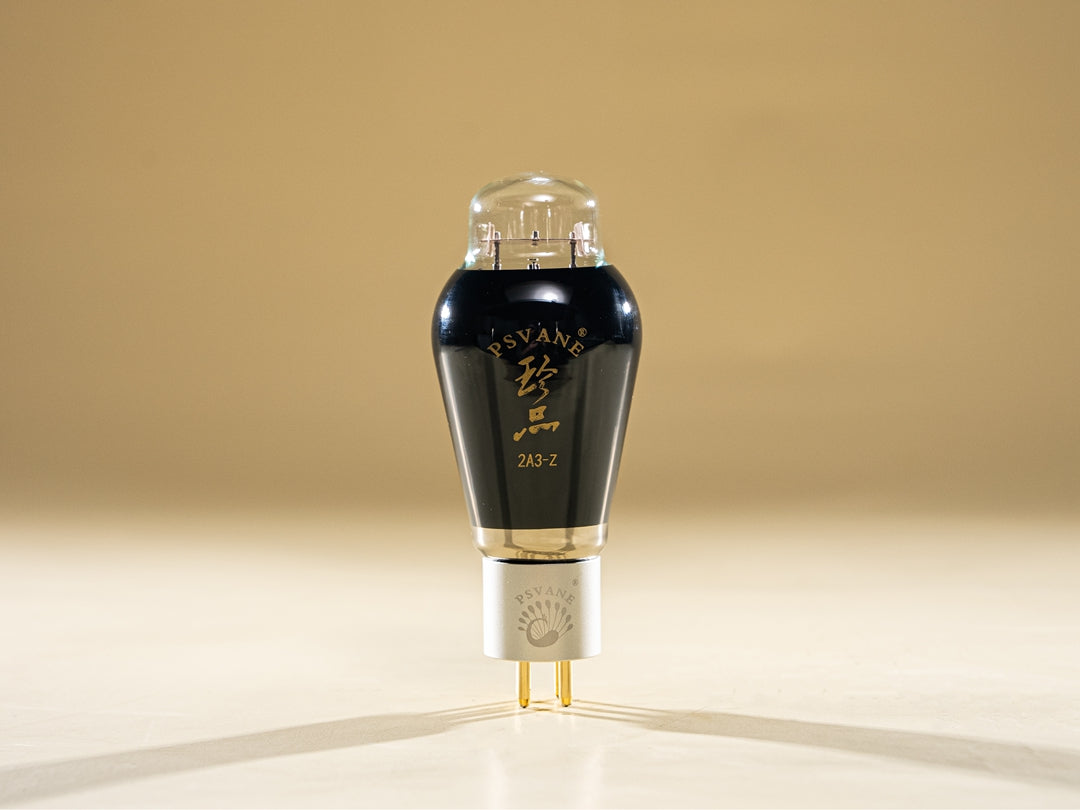

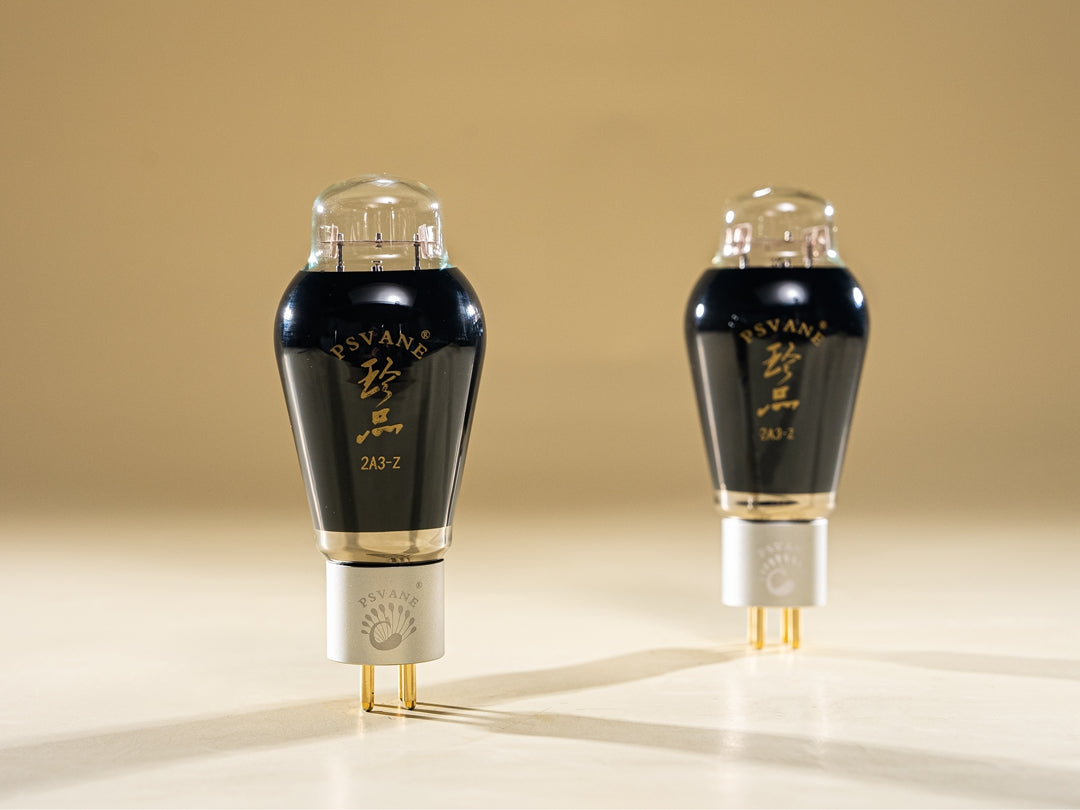

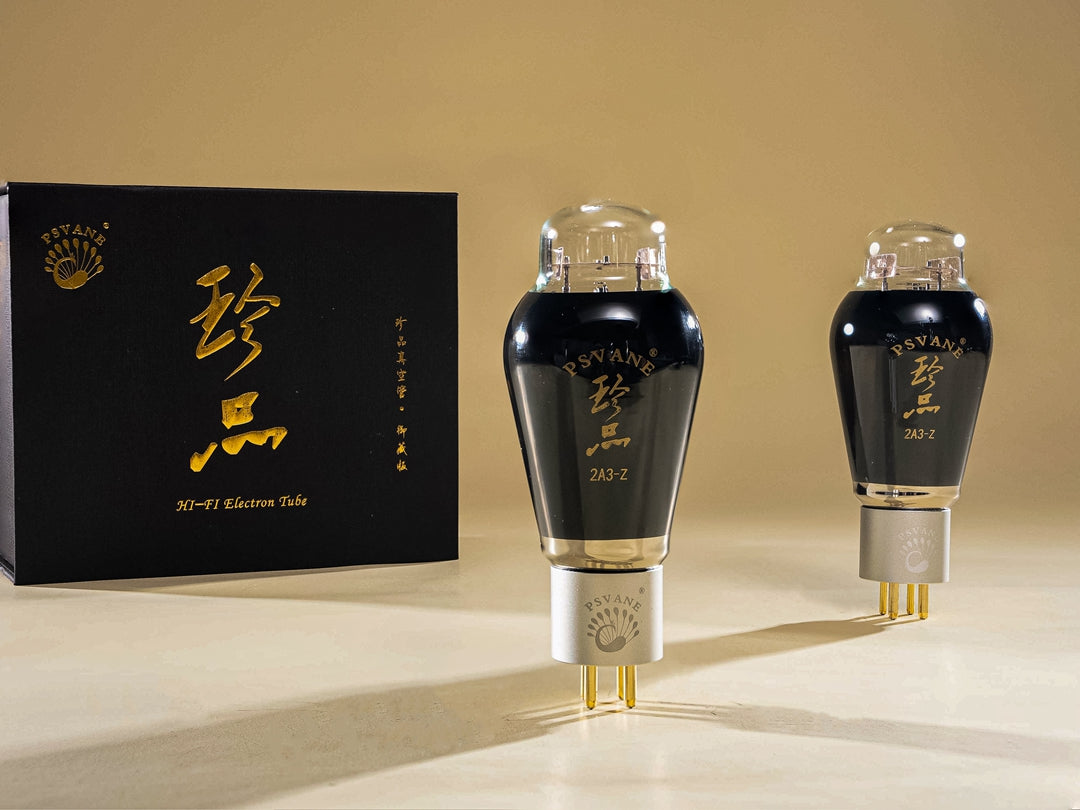

PSVANE TREASURE Series 2A3-Z Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
For European customers: The discounted prices displayed on the page already include all applicable duties.
Filament Voltage and Current
Uf .............................................. 2.5 V
If ............................................... 2.5 A
Maximum Ratings
| Parameter | Value |
|---|---|
| Anode Voltage (Ua) | 300 V |
| Anode Dissipation Power (Pa) | 25 W |
Inter-Electrode Capacitance
| Parameter | Value |
|---|---|
| Input Capacitance | 7.5 pF |
| Output Capacitance | 5.5 pF |
| Cross-Coupling Capacitance | 16.5 pF |
Static Parameters
| Parameter | Value |
|---|---|
| Anode Voltage (Ua) | 250 V |
| Grid Voltage (Ug) | -45 V |
| Anode Current (Ia) | 60 mA |
| Transconductance (Gm) | 5.25 mA/V |
| Internal Resistance (ri) | 0.8 kΩ |
| Amplification Factor (μ) | 4.2 |
| Output Power (Pou) | 3.5 W |
PSVANE TREASURE Series 2A3-Z Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)
Sale price$173.00
Regular price$192.80 (/)
