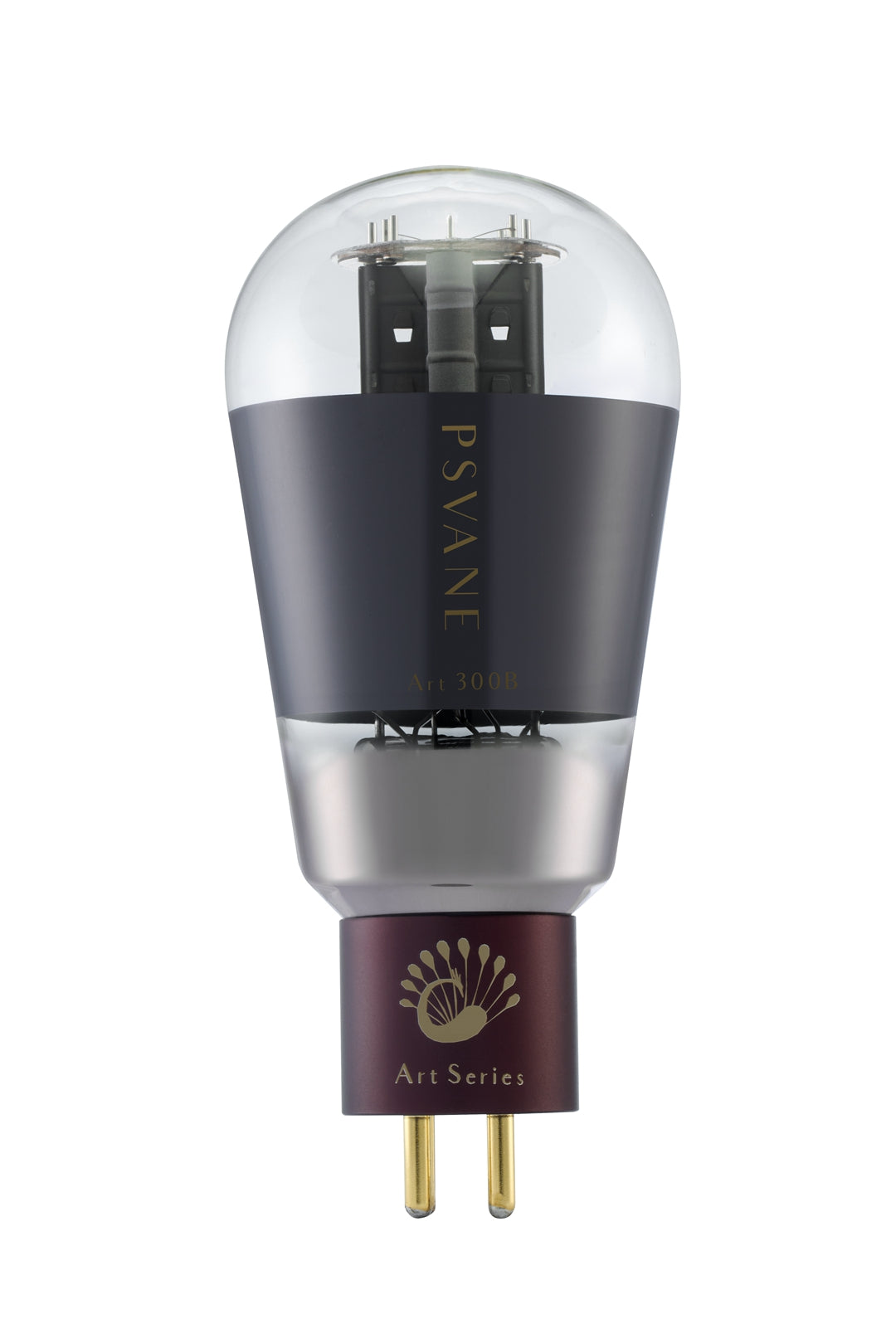

PSVANE ART TIII Series 300B-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 5 V
If ............................................... 1.2 A

Maximum Ratings

Anode Voltage (Ua) ........................ 480 V
Anode Dissipation Power (Pa) ............. 40 W

Cathode Current

• Self-Bias ................................. 100 mA
• Fixed Bias ................................ 70 mA

Inter-Electrode Capacitance

Input Capacitance ............................ 9 pF
Output Capacitance ........................... 4.3 pF
Cross-Coupling Capacitance ............... 15 pF

Static Parameters

Ua .............................................. 300 V
Ug .............................................. -60 V
Ia ............................................... 60 mA
Gm ............................................ 5.5 mA/V
Ri ............................................... 0.7 kΩ
μ ................................................ 3.85
Output Power (Pout) ........................ 6.6 W
