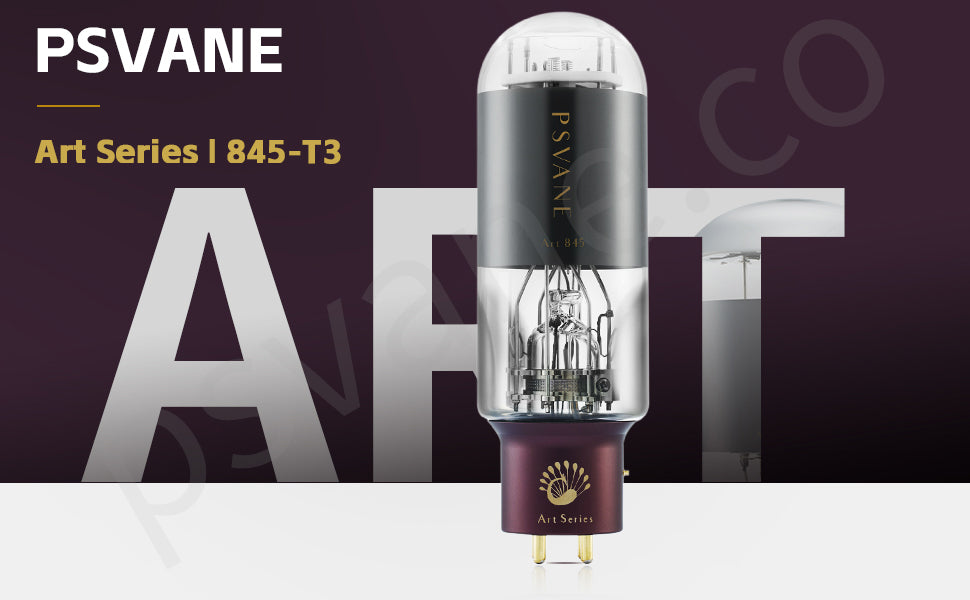

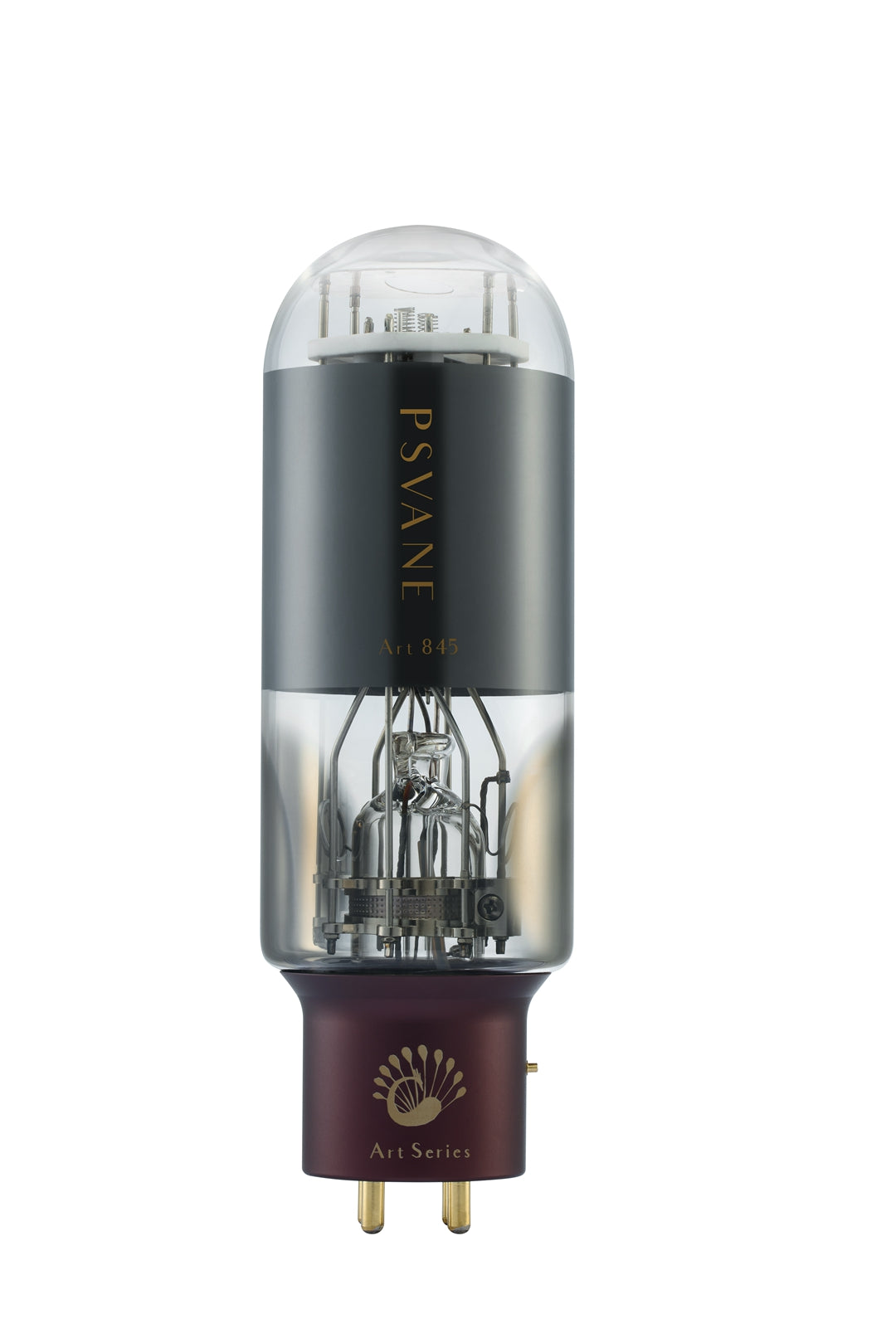

PSVANE ART TIII Series 845-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 10 V
If ............................................... 3.25 A

Maximum Ratings

Anode Voltage (Ua) ........................ 1250 V
Anode Dissipation Power (Pa) ............. 75 W
Output Power (at maximum signal) ....... 150 W
Maximum Anode Current (Ia) ............. 120 mA

Inter-Electrode Capacitance

Input Capacitance ............................ 6 pF
Output Capacitance ........................... 6.5 pF
Cross-Coupling Capacitance ............... 14.5 pF

Static Parameters

Ua .............................................. 1250 V
Ug .............................................. -200 V
Ia ............................................... 80 mA
Gm ............................................ 3 mA/V
ri ................................................. 1.7 kΩ
μ ................................................ 5
Load Resistance (RL) ....................... 3.4 kΩ
Peak Grid Voltage (Ug(pk)) ............... 69 V
Output Power (Pout) ......................... 15 W
