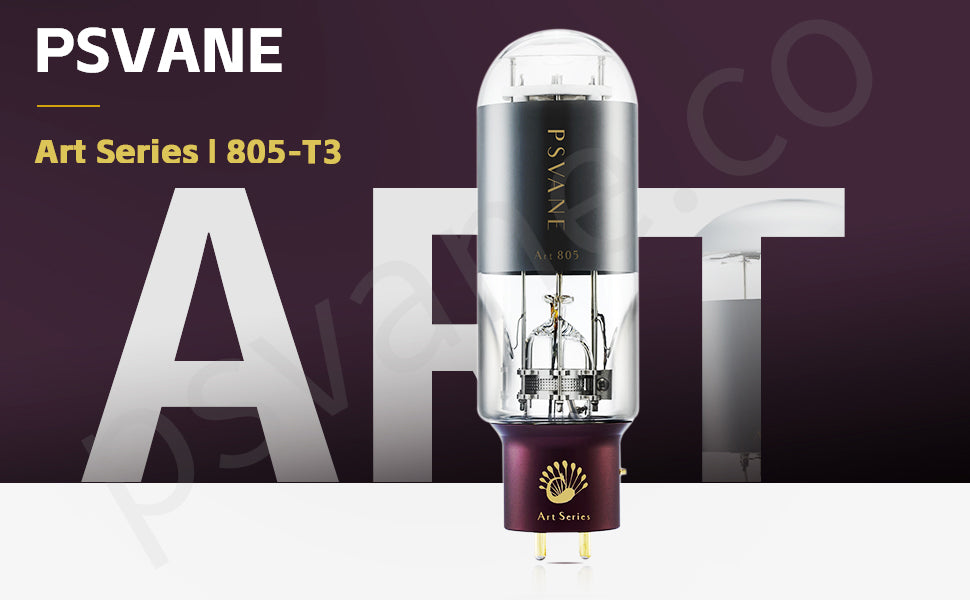

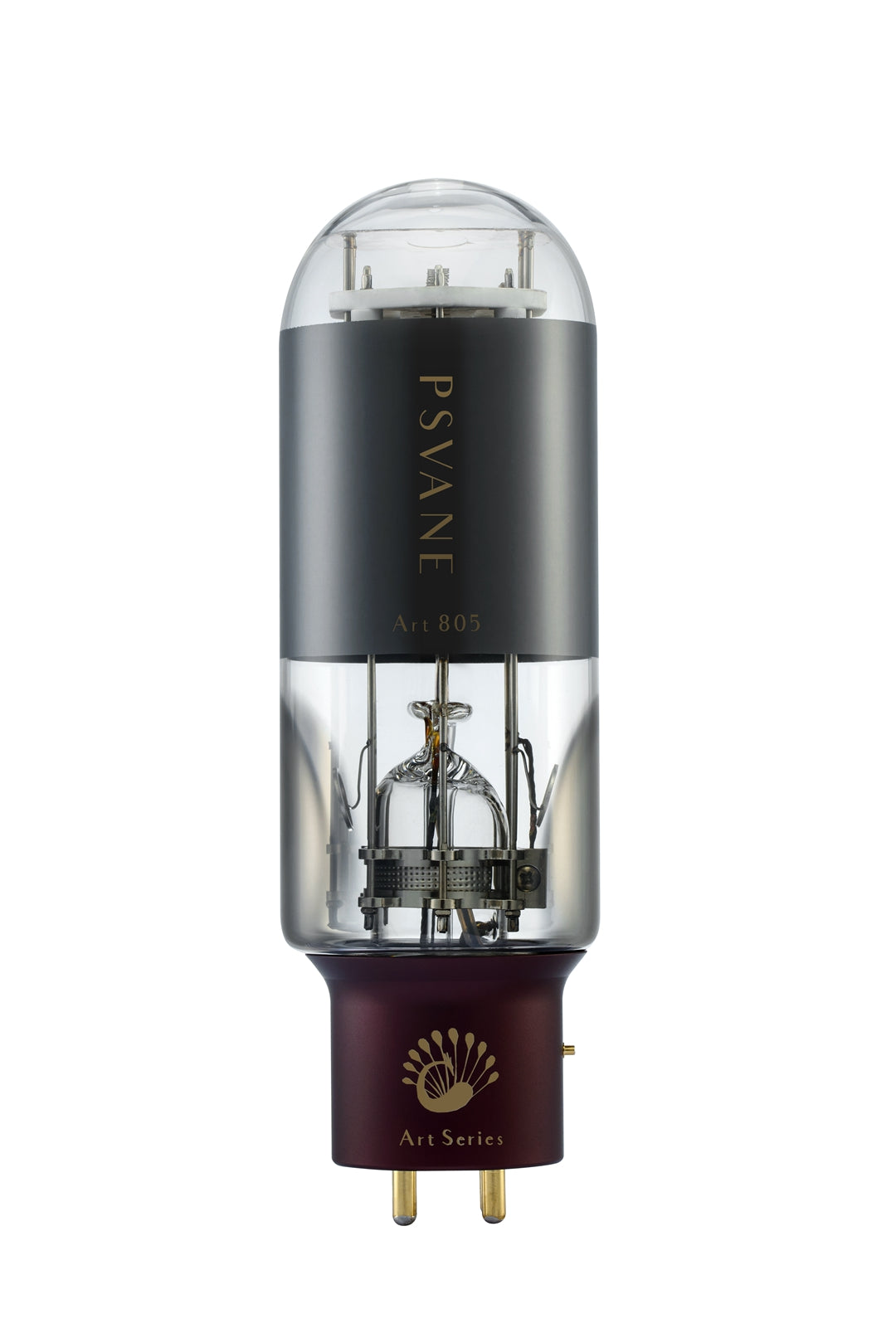

PSVANE ART TIII Series 805-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 10 V
If ............................................... 3.25 A

Maximum Ratings

Anode Voltage (Ua) ........................ 1500 V
Anode Dissipation Power (Pa) ............. 125 W
Maximum Anode Current (Ia) ............. 210 mA

Inter-Electrode Capacitance

Input Capacitance ............................ 8.5 pF
Output Capacitance ........................... 10.5 pF
Cross-Coupling Capacitance ............... 6.5 pF

Static Parameters
