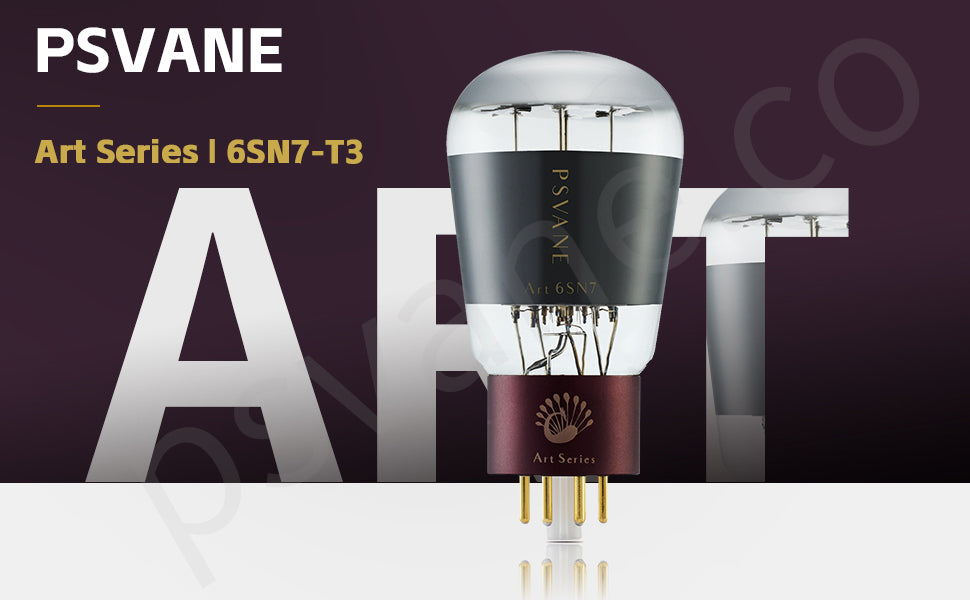

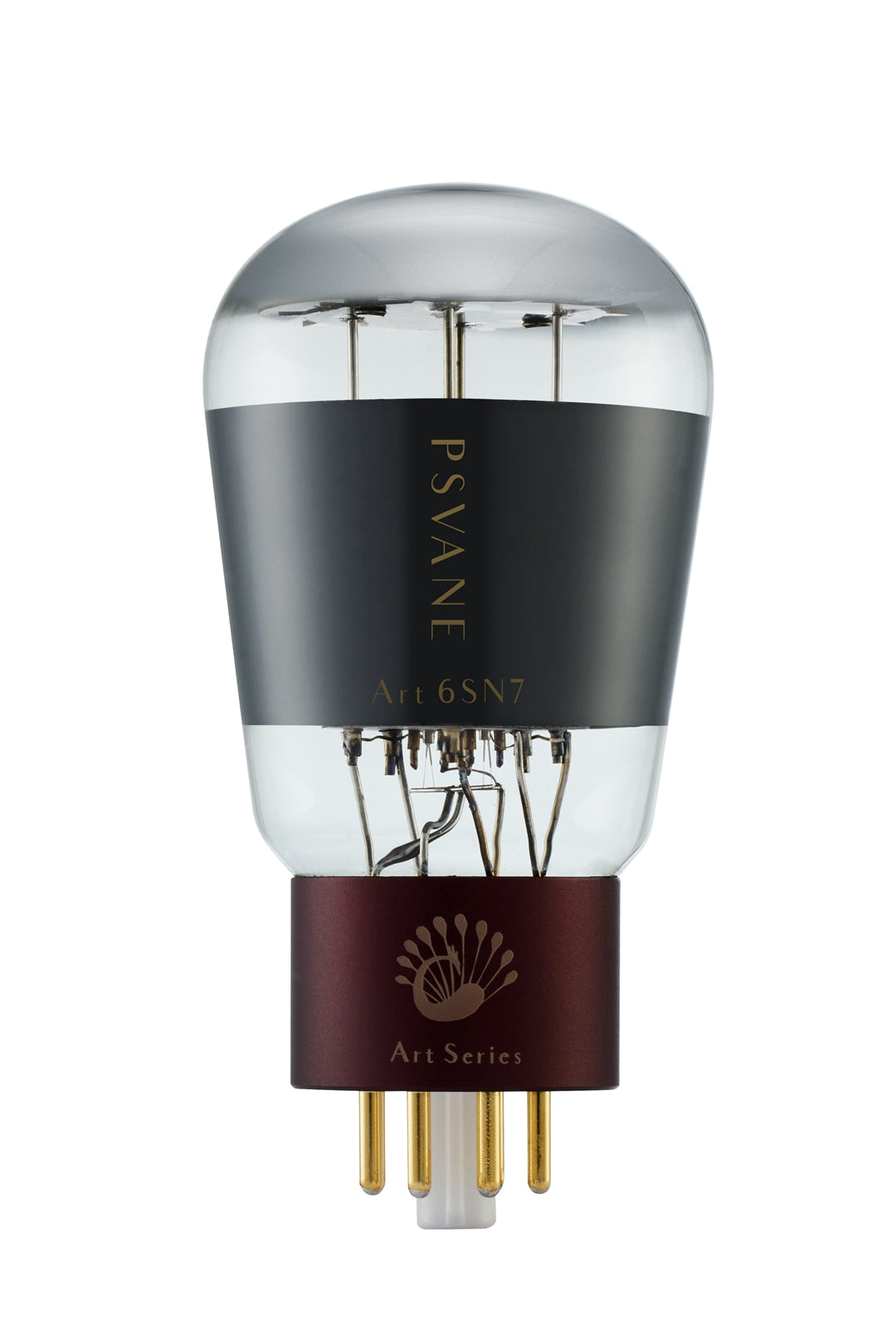

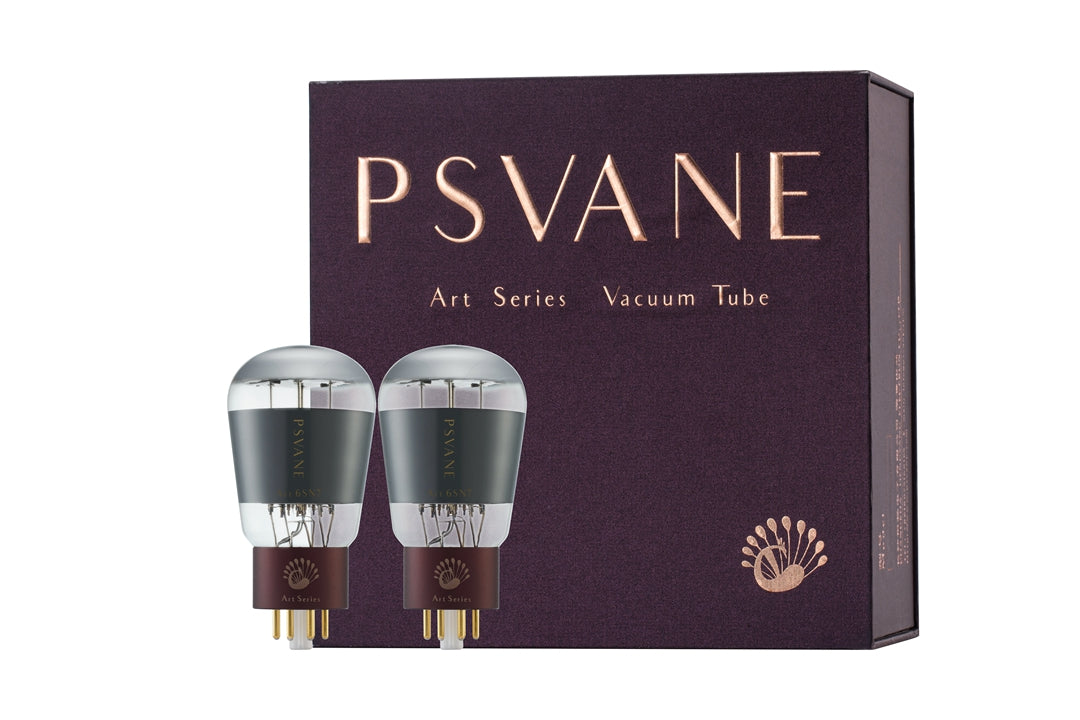

PSVANE ART TIII Series 6SN7-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Heater Voltage and Current
UH ........................................... 6.3 V
IH ............................................ 0.6 A

Maximum Ratings for Class A1 Amplification (per side)
Ua ............................................ 450 V
Ik .............................................. 20 mA
Pa ............................................ 5 W
Pa (No.1 + No.2) ..................... 7.5 W
Rg ............................................. 1 MΩ
Uhk ........................................... ±100 V

Static Parameters
Ua ............................................ 90 / 250 V
Ug ............................................ 0 / -8 V
Ia ............................................. 10 / 9 mA
Gm .......................................... 3 / 2.6 mA/V
Ri ............................................ 6.7 / 7.7 kΩ
μ ............................................... 20 / 20
Ia (at Ug = -12.5V) ................... _ / 1.3 mA
Ug (at Ia = -10μA) .................... -7 / -18 V
