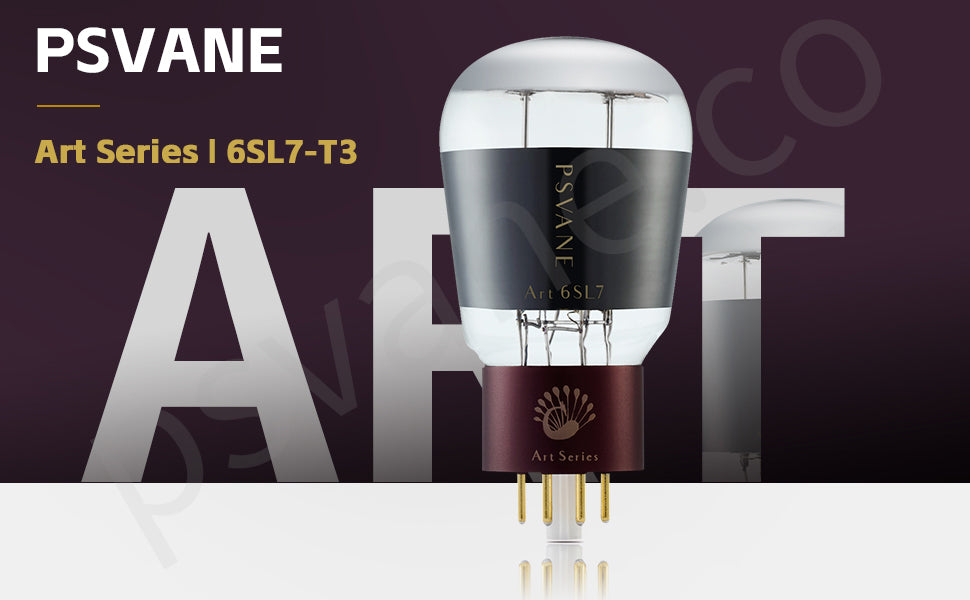

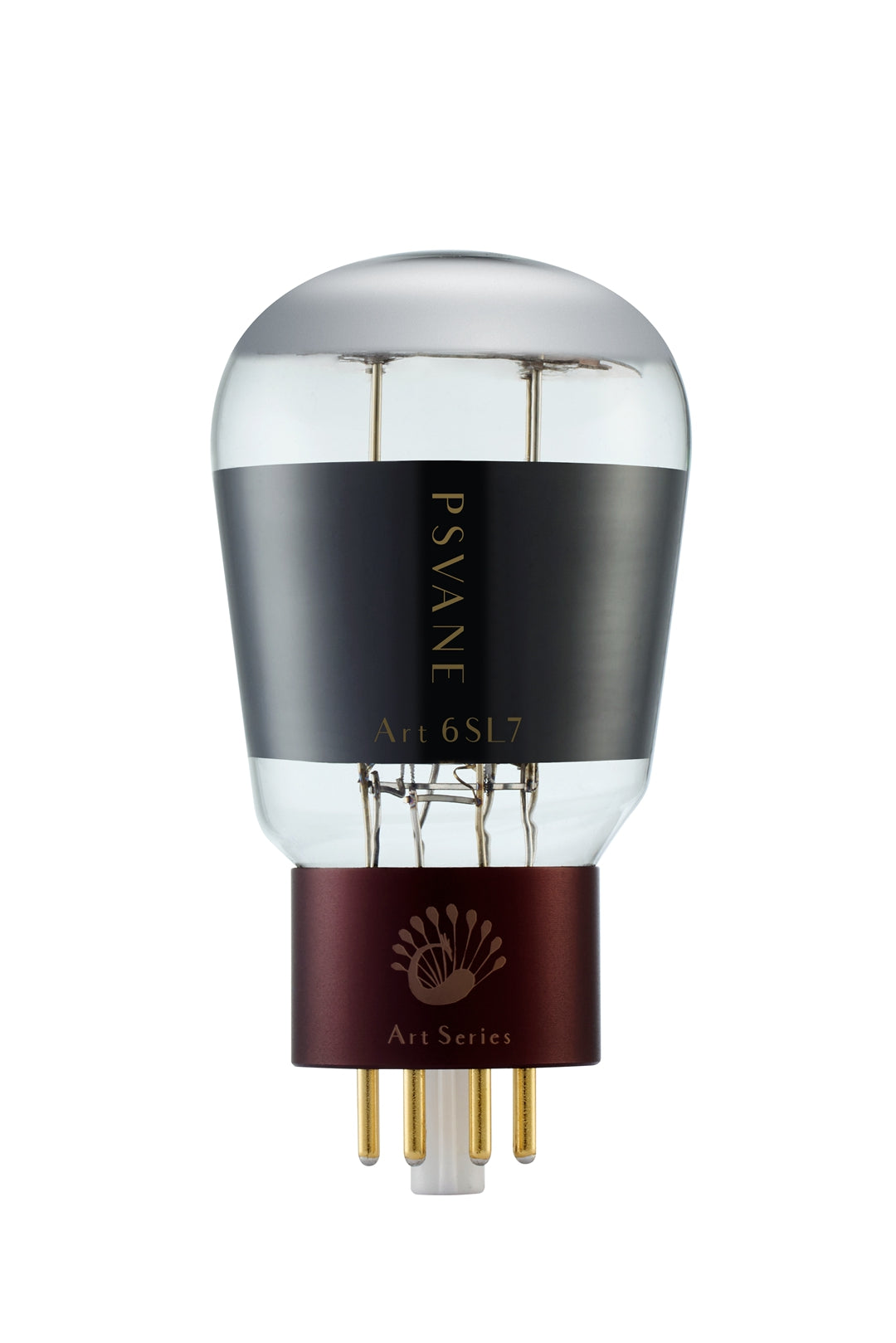

PSVANE ART TIII Series 6SL7-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Heater Voltage and Current
Uh .......................................... 6.3 V
Ih ........................................... 0.3 A

Maximum Ratings (per unit)
Anode Voltage ......................... 300 V
Positive Grid Voltage ............... 0 V
Anode Dissipation Power ......... 1 W
Heater-to-Cathode Voltage .... ±90 V

Static Parameters
Ua .......................................... 250 V
Ug .......................................... -2 V
Ia ........................................... 2.3 mA
Gm ........................................ 1.6 mA/V
ri ............................................ 44 kΩ
μ ........................................... 70
