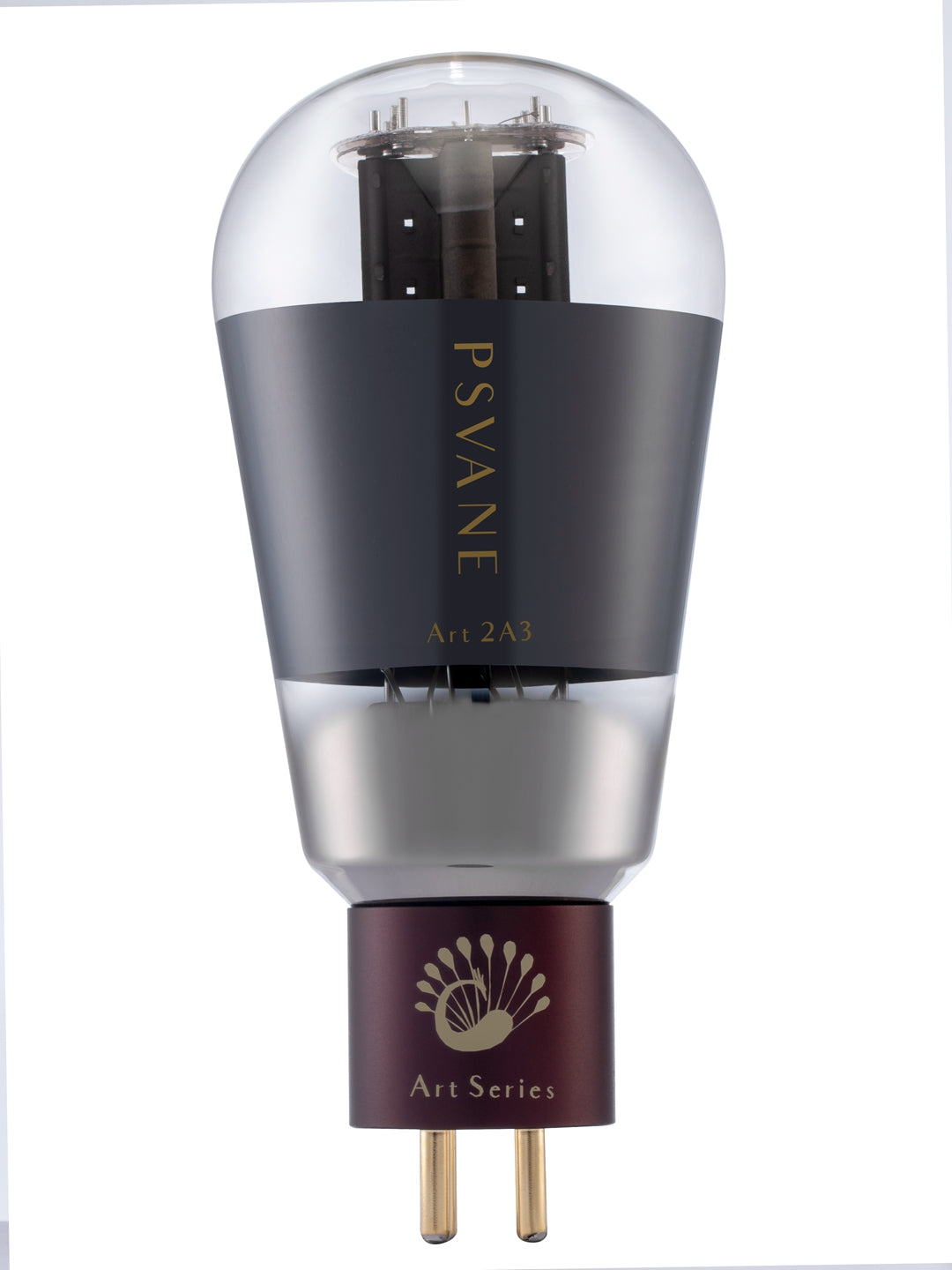

PSVANE ART TIII Series 2A3-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 2.5 V
If ............................................... 2.5 A

Maximum Ratings

Anode Voltage (Ua) ........................ 300 V
Anode Dissipation Power (Pa) ............. 25 W

Inter-Electrode Capacitance

Input Capacitance ............................ 7.5 pF
Output Capacitance ........................... 5.5 pF
Cross-Coupling Capacitance ............... 16.5 pF

Static Parameters

Ua .............................................. 250 V
Ug .............................................. -45 V
Ia ............................................... 60 mA
Gm ............................................ 5.25 mA/V
ri ................................................. 0.8 kΩ
μ ................................................ 4.2
Output Power (Pou) ........................... 3.5 W
