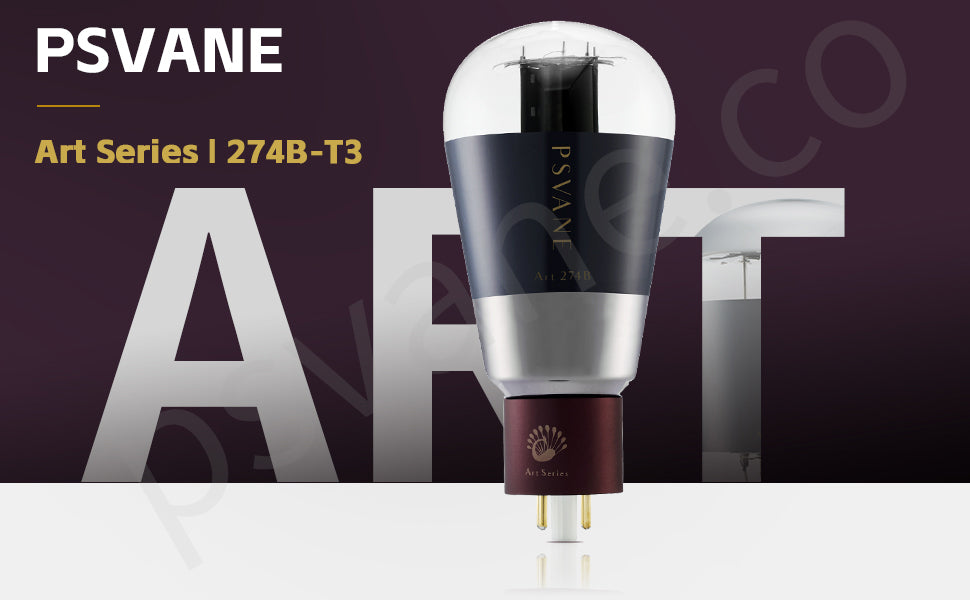

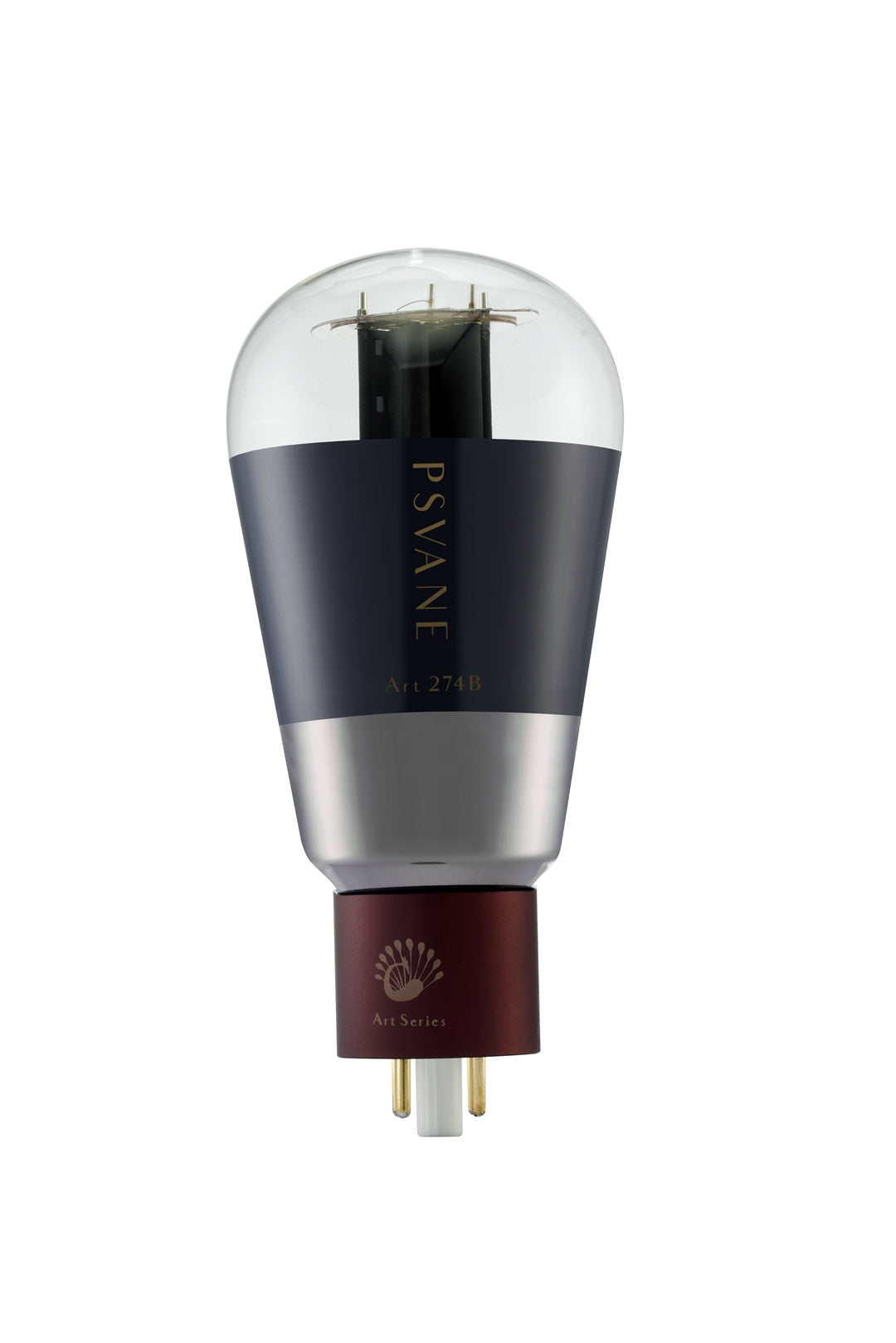

PSVANE ART TIII Series 274B-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 5 V
If ............................................... 2 A

Maximum Ratings

Peak Inverse Anode Voltage ............ 1550 V
Peak Anode Current ....................... 750 mA

Recommended Operating Conditions

Anode Supply Voltage .................... 2 × 500 V
Per-Arm Impedance ....................... 75 Ω
Load Impedance ............................ 2000 Ω
Filter Capacitance ......................... 4 μF
Rectified Current ........................... ≥220 mA
