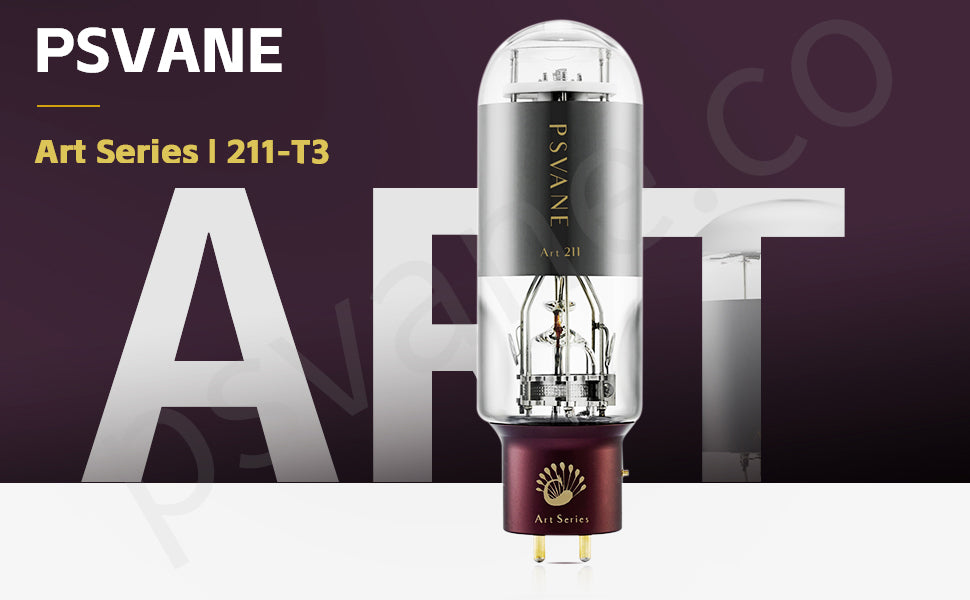

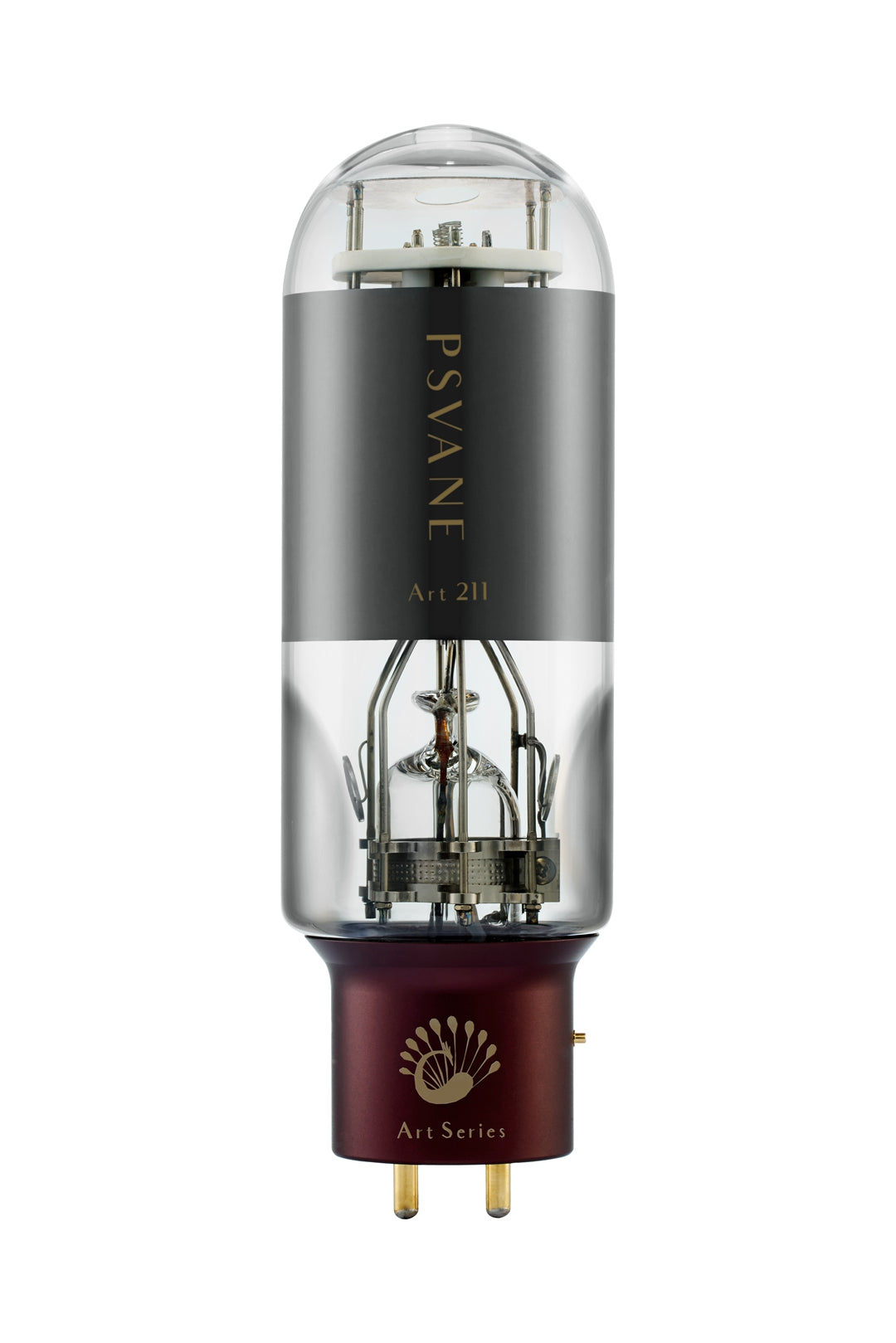

PSVANE ART TIII Series 211-TIII Vacuum Tube Amplifier Tubes Matched Pair (2 PACK)

For European customers: The discounted prices displayed on the page already include all applicable duties.

Filament Voltage and Current

Uf .............................................. 10 V
If ............................................... 3.25 A

Inter-Electrode Capacitance

Input Capacitance ............................ 6 pF
Output Capacitance ........................... 5 pF
Cross-Coupling Capacitance ............... 14 pF

Static Parameters

Anode Voltage (Ua) ......................... 1250 V
Grid Voltage (Ug) ............................ -70 V
Anode Current (Ia) .......................... 100 mA
Transconductance (Gm) .................... 3.8 mA/V
Amplification Factor (μ) (at Ia = 75 mA) ......... 12
Load Resistance (RL) ....................... 7 kΩ
Output Power (Pout) ......................... 10 W
